Make Unifi OpenVPN working in Ubuntu 24.04

Configure server

Go on UniFi panel and set a new server up following these menu entries

Setting > VPN > VPN Server > Create New > OpenVPN

Export configuration

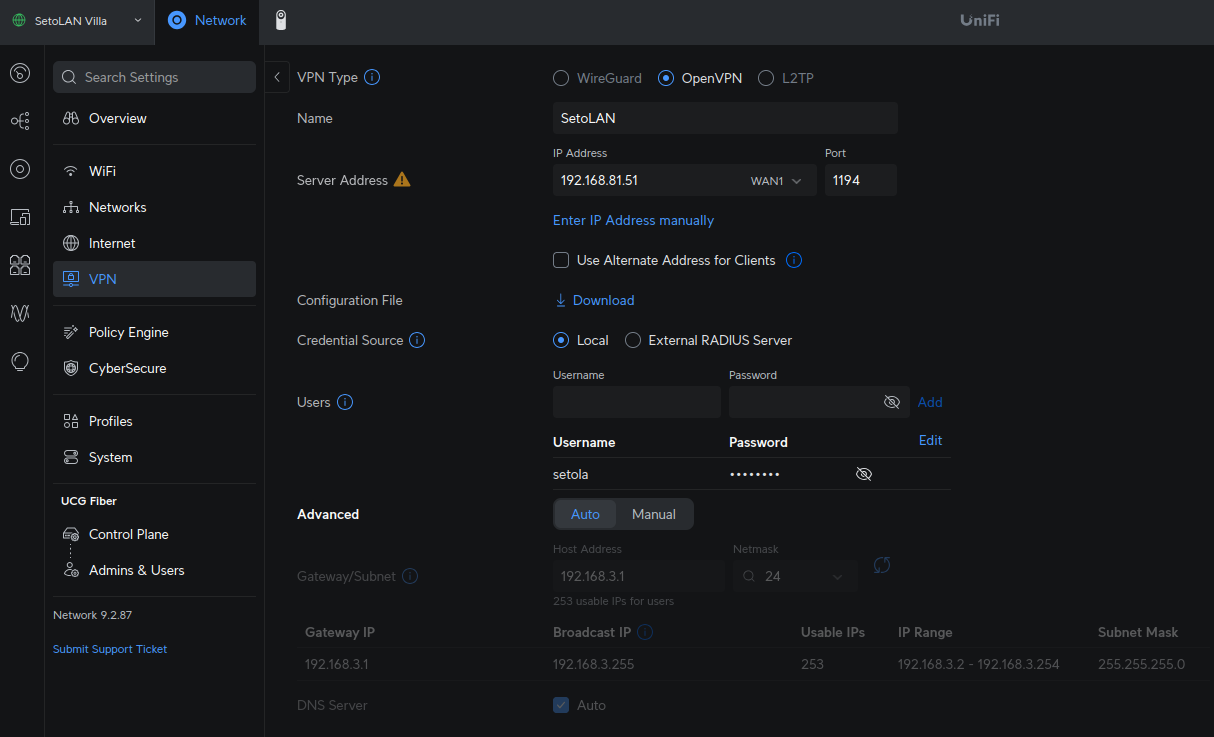

In the UniFi panel you can download a configuration file for your OpenVPN connection. UniFi OpenVPN Panel

Change crypto alghorithm

In oreder to make the exported .ovpn file on Ubuntu, you need to change the cipher algorithm from AES-256-CBC to AES-256-GCM

sed -i 's/cipher AES-256-CBC/cipher AES-256-GCM/' myvpn.opvn

Remove default routers

If you want to access your remote network but use your local for regular internet access you need to remove routes pushed by vpn server, by adding these lines to .ovpn file.

route 192.168.82.0 255.255.255.0
route-metric 50
route-nopull

You need to remove the Automatic checkbox from Routes and add ip or subnets to be reached using the VPN tunnel.

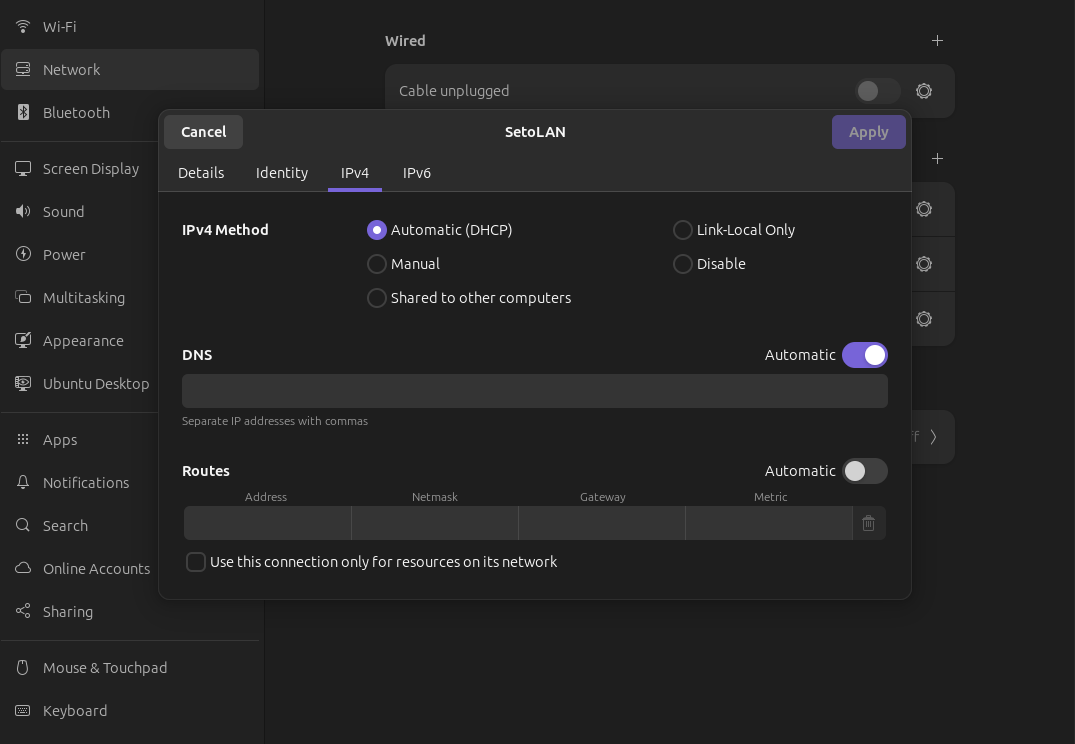

OpenVPN Ubuntu Panel - disable automatic routes

Public IP

Be sure to use a reachable IP as your remote
